So, more or less, this:
View attachment 15526

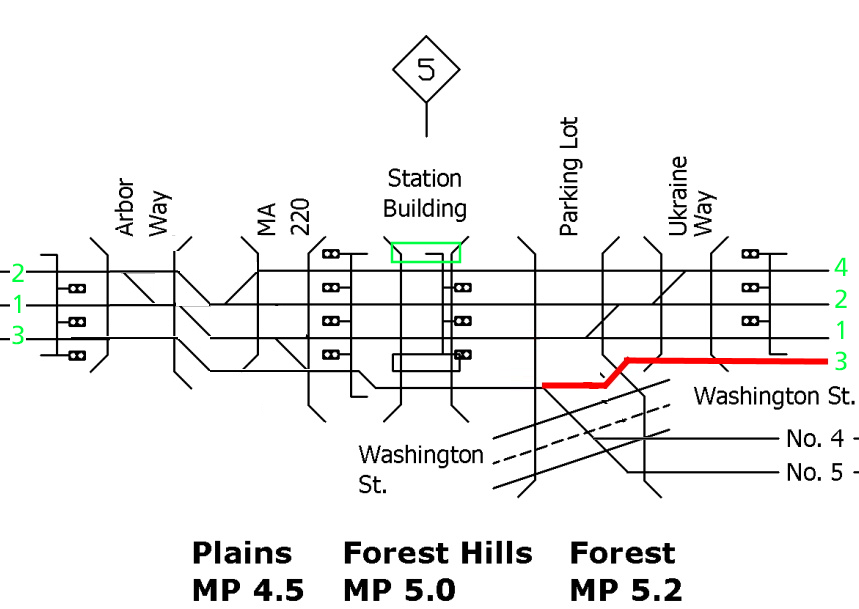

Where today the southernmost track (Track 4 in this version) and adjacent track (Track 2 in this diagram) do not merge at PLAINS, where the northernmost track (Needham/Track 3 in this diagram) splits from the south platform track at PLAINS, the Needham Line "No. 4" track merges with this diagram's Track 1 at FOREST, and this diagram's Track 3 does not exist east of FOREST on the NEC.
Track 3, the additional north-side NEC track
from FOREST to however far it goes (I'm having some trouble seeing how it gets through Readville without blowing up part of the station, but I could well be missing something) is unambiguously a good thing.
What I continue not to understand is why
this really quite radical reconfiguration of the Forest Hills station and interlockings is in any way ideal, appropriate, or beneficial.
There does not appear to me to be any significant impediment to carving a side platform out on the southernmost track (the diagram's Track 4) at Forest Hills to serve that track, like what they did at Ruggles. If there is some reason that doing so would require Track 4 to be a branch off Track 2 at PLAINS rather than a full run-through track it is not at all apparent to me.
Your reconfiguration of PLAINS seems problematic to me. Going from two clear run-through tracks (the southern two NEC tracks, 4 and 2 in the diagram) to one (Track 2, with the caveat of the forced merge with Track 4 at PLAINS) does not seem beneficial. It's completely unnecessary to force that merge in order to have a platform there. The fact that you've also forced Needham to serve only Track 3 from FOREST to PLAINS makes the problem worse. Any time a Needham train came off the branch through Plains, any train on Track 3 (except, God help us, another Needham) would be forced to switch to Track 1 (or 2 or 4, I suppose) at or before PLAINS, because the Needhams can only serve Track 3 at FH. Now, perhaps in theory their meets could be staged with southbound traffic so they simply wait clear of Track 3 at FOREST, but that runs the risk of making Needham's schedules awfully brittle.
I really don't get what the problem is with the diagram F-Line originally posted where the only major change is that the north platform (Needham) track becomes BOTH a Needham track and the start of the fourth NEC track (this diagram's Track 3). In essence this fourth NEC "Track 3" would start at PLAINS where the Needham track currently branches from the south platform track.
I have still not heard a single actual reason why cutting Needham to a single track, why merging Track 4 and Track 2 at PLAINS instead of splitting Track 1 and Track 3 or whatever their numbers are as is the case now, is preferable to the actual plan of only touching FOREST and points west. I am completely lost as to the point of such radical reconfiguration.
The basic problem, completely unchangeable without a megaproject, is that the width of the trench means that there is not room for four tracks east of PLAINS. So all that we're really talking about is how three tracks turn into four at PLAINS (and how they subsequently interface with FOREST). The actual plan, from where F-Line located the original diagram, is to make no changes at PLAINS; the north platform track will split from the northern Southwest Corridor track as it does today, and it will split again into a Needham track and the fourth NEC track. If you ask me, to qualify your proposal as a Reasonable Transit Pitch, you need to explain why your idea is superior to the actual plan. What does forcing Needham to use only one track, and forcing the two southern tracks to merge instead of the two northern tracks splitting gain you that simply adding a post-platform split from the Needham track at FOREST doesn't?
