That would be a good location for TOD, which would hopefully be laid out to provide some pedestrian oriented retail/shops along this path.
Agreed - this area is begging for TOD. Lechmere and Union Square already have major development under way, while Gilman Square through Medford/Tufts are established neighborhoods where selective infill is the name of the game. But East Somerville has a lot of underutilized nearby land, especially as McGrath gets grounded and thus narrowed. A few of the businesses are essential, albeit not fixed to this exact spot (Cataldo ambulance, Eversource), but there's a lot of work truck parking and auto body shops that don't below right next to a brand new transit station. Replacing those first few lots along Joy Street with residential + two-sided retail arcade would make a huge difference.


The EGE

Senior Member
Joined
Jun 29, 2013
Messages
1,163
Reaction score
1,532
West of Sycamore. I don't think I've seen hi-rail electrical trucks before.


Community Path, again west from Sycamore Street. There's a pronounced dip on this section; I wonder if that's to slow riders before the street crossings.


Same section of path, this time viewed from Central Street:


Same view, from a few feet to the left:


And the view west from Central Street. Those stone stairs at left led to Somerville Junction station, which closed sometime in the 1940s. There's a second smaller set of stairs next to the cone at right.


Looking southeast from Lowell Street. The terminal of the 2015 Community Path extension is at right; you can see how it'll connect to the next extension.


Now we're at Magoun Square station, where the walkway looks ready for its finishings:




The station elevators viewed from inside the Maxwells Green complex:


Perhaps my favorite shot of the day, from Cedar Street. There are four locations with crossovers on GLX revenue tracks: just inbound of Union Square and Medford/Tufts to turn trains, north of Red Bridge to get trains to the yard, and this single trailing-point crossover at Magoun Square. Having a crossover at about every other station is typical for both light rail and heavy rail for operational flexibility. This crossover would allow turning trains at Magoun Square if necessary - hopefully, when connecting the Route 16 extension to Medford/Tufts.


The EGE

Senior Member
Joined
Jun 29, 2013
Messages
1,163
Reaction score
1,532

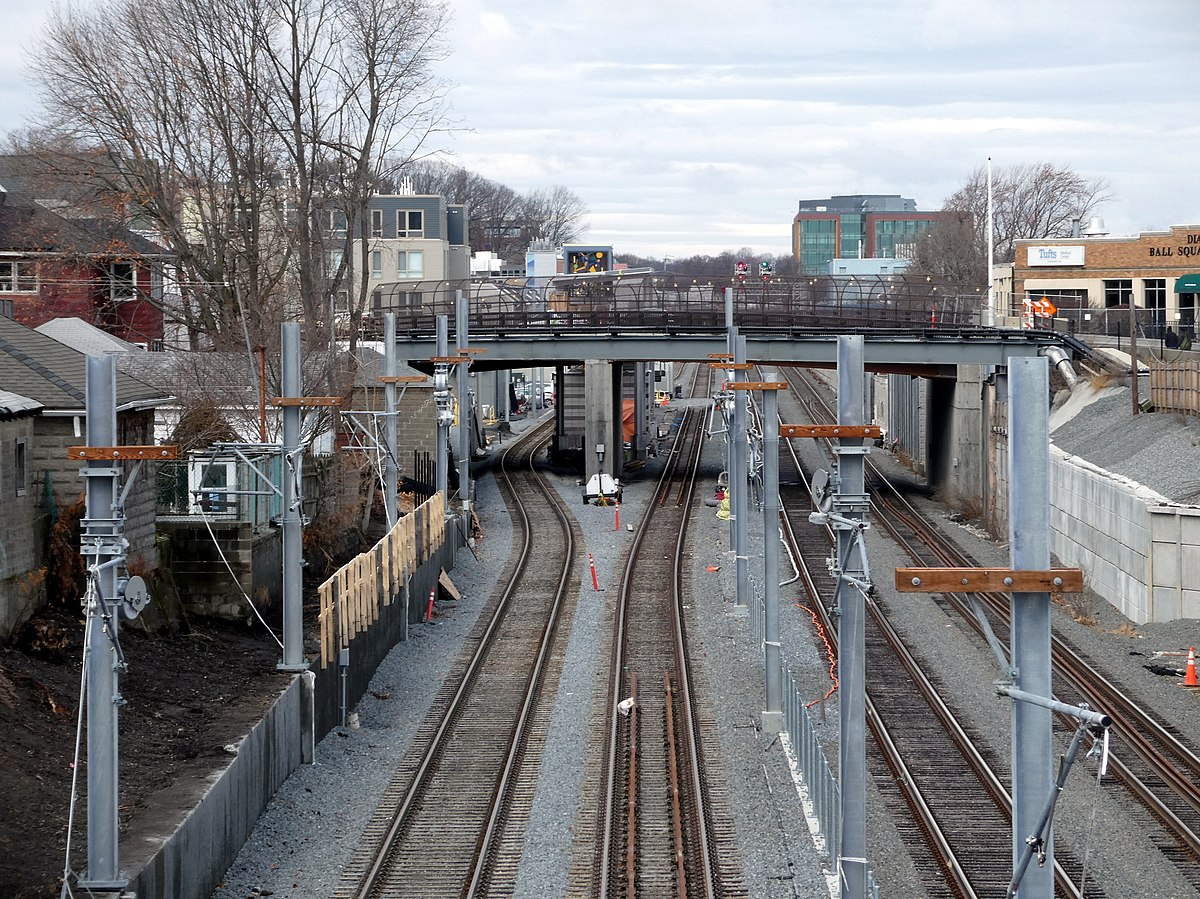

At Cedar Street you can rotate 180 degrees and see Ball Square station. The stations are only 2,600 feet apart, but their diagonal alignment on the street grid means their walksheds are more separate than the distance would suggest.

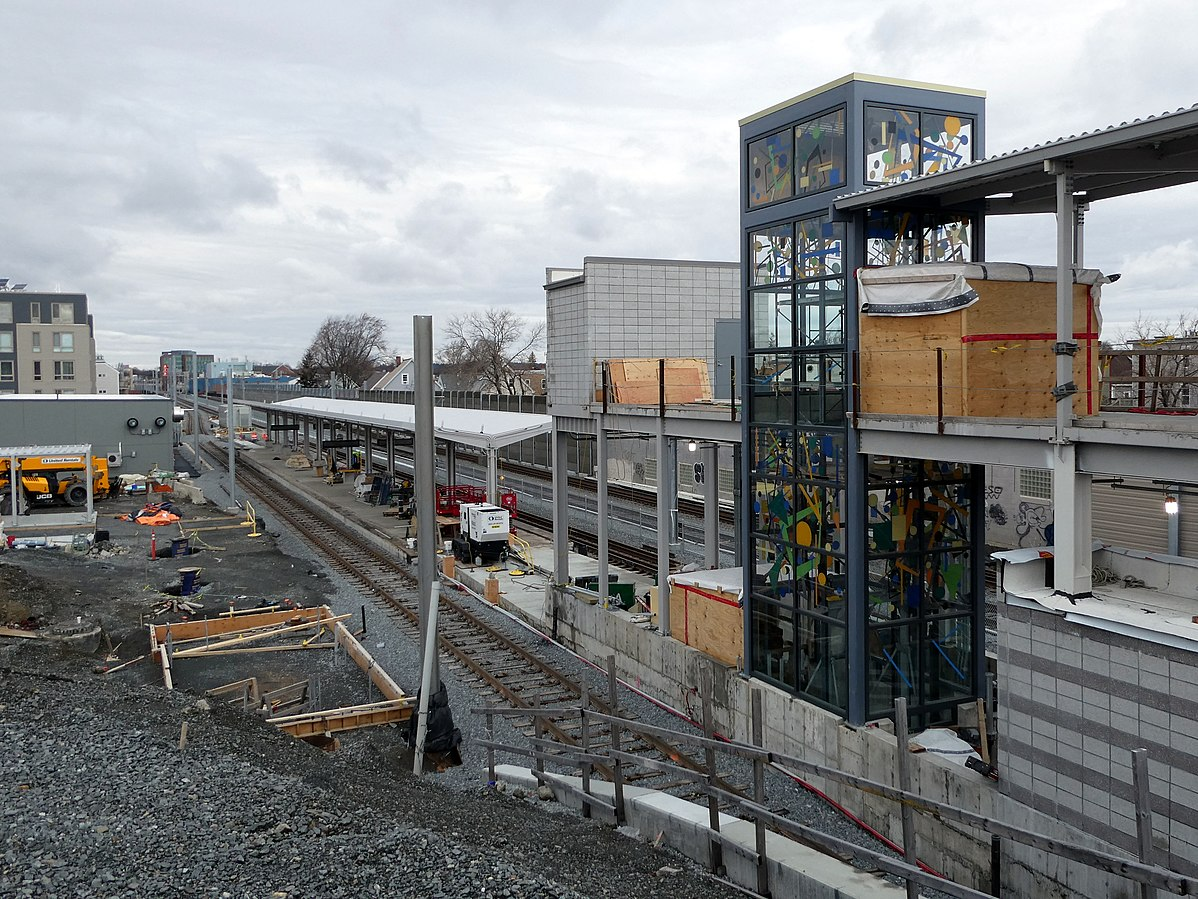

Ball Square station is progressing nicely. I'm fond of the elevator shaft artwork - it's an inexpensive way to add color and charm to these fairly basic stations.

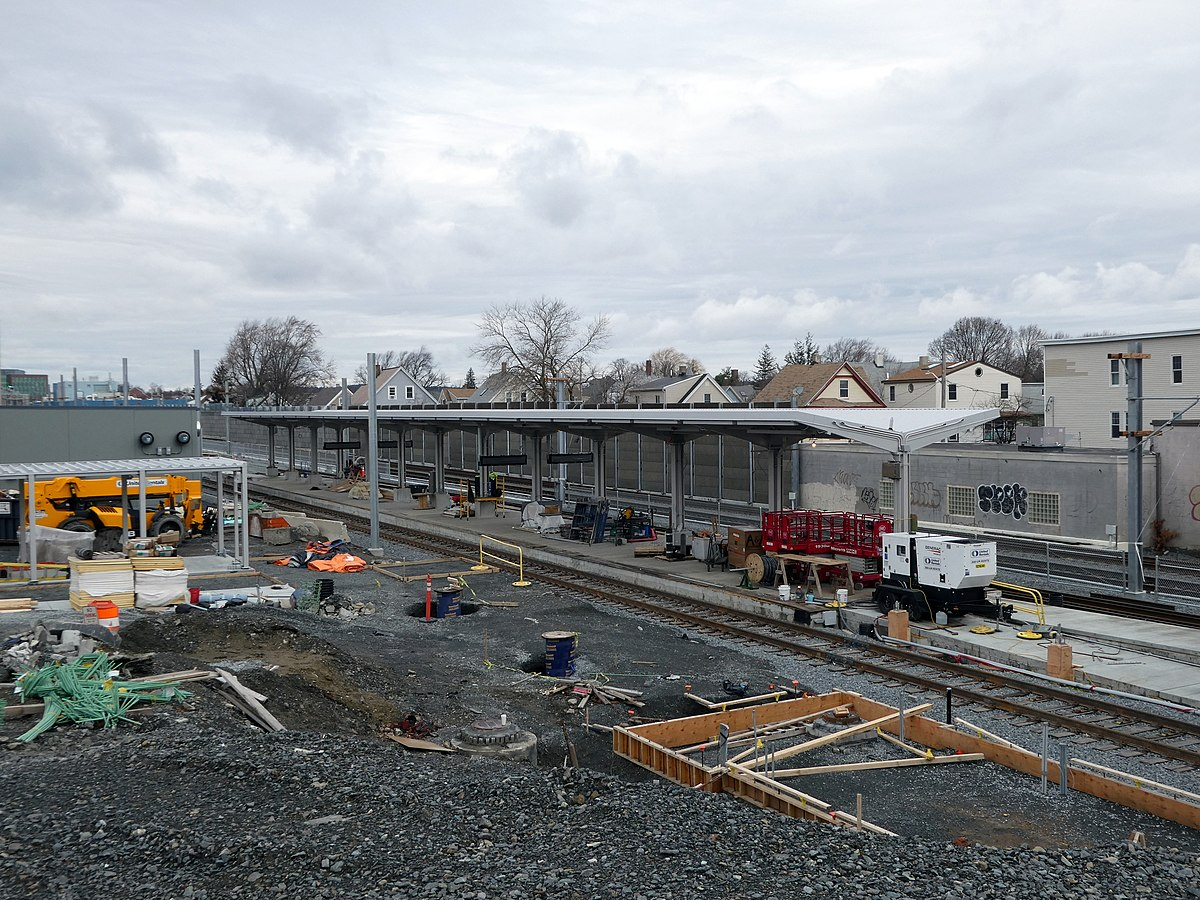

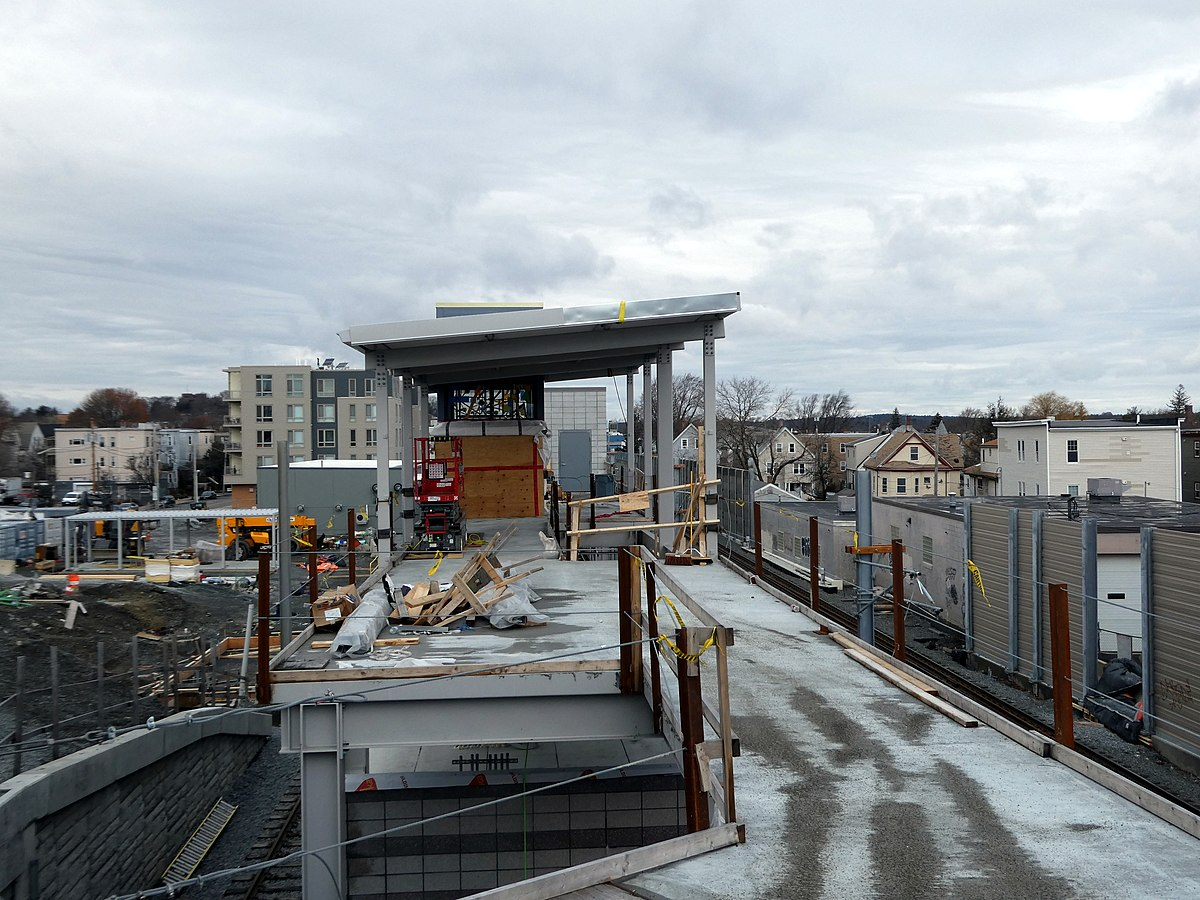

The wood framing in this photo and the last one is for the concrete pad of the secondary entrance, which will have a lockable overhead gate at one end and fare machines at the other.

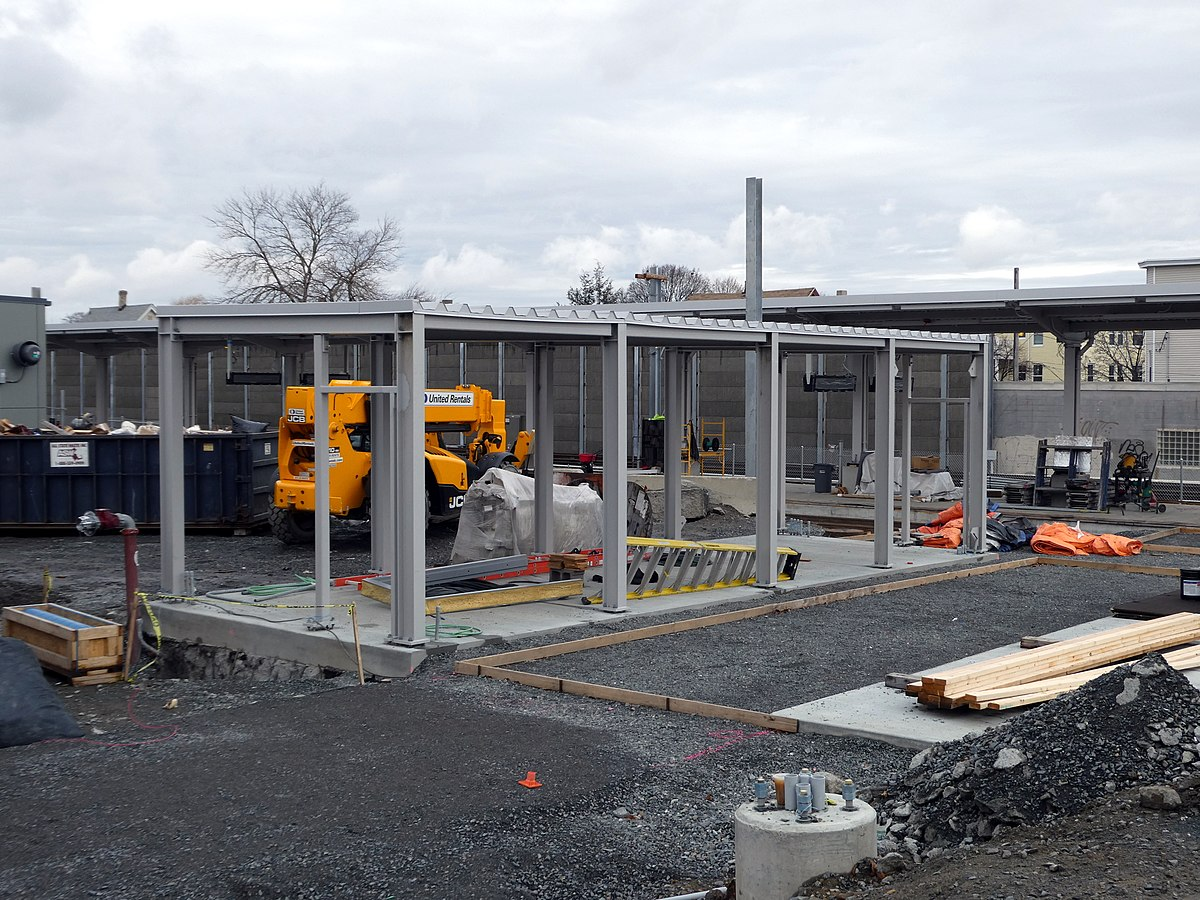

Bike cage:


There are three substations for the GLX: Red Bridge (which I did not manage to photograph), Pearl Street, and Ball Square.

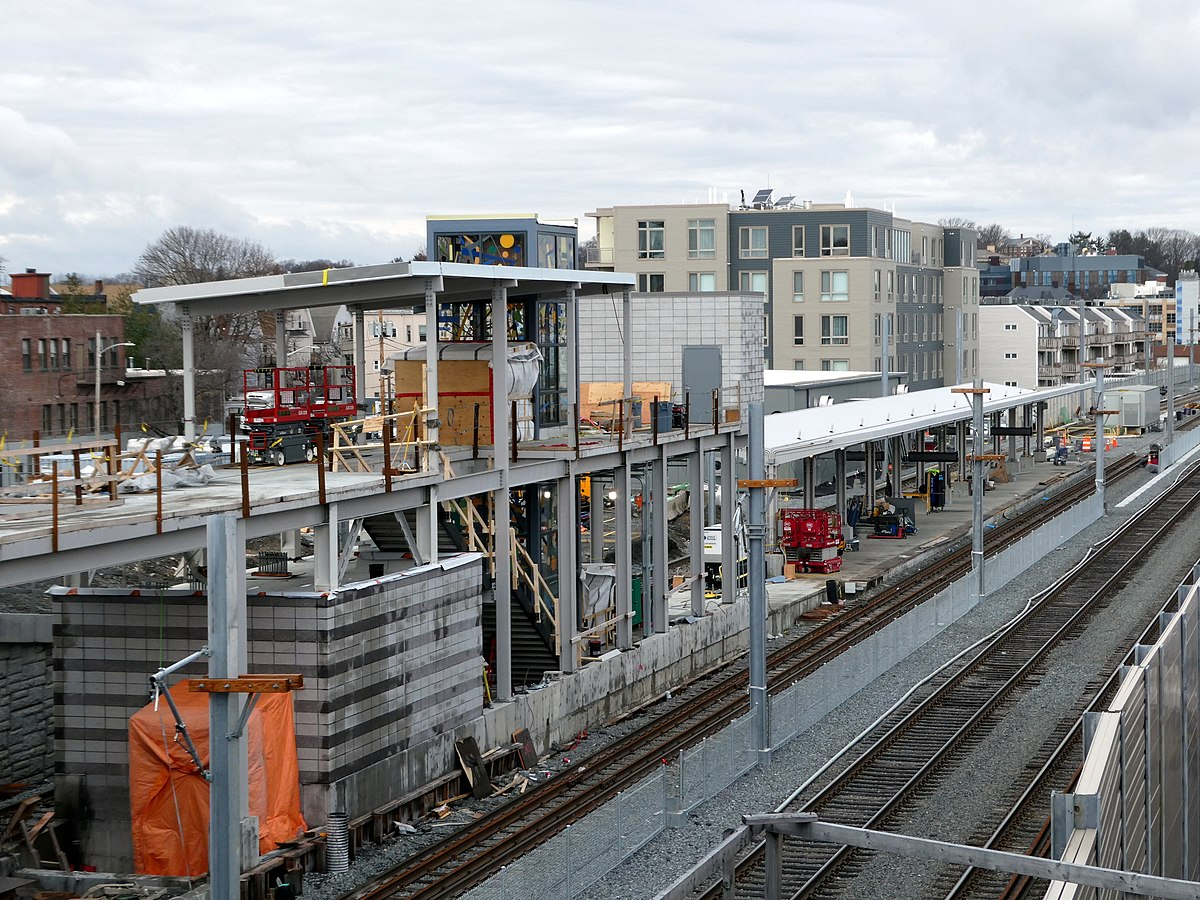

From College Avenue you can not only see Ball Square, but a little bit of Magoun Square as well. The tracks aren't actually kinked; you're just seeing a mile of track in one-third of a frame.


Tomorrow I'll finish up the photos.

Last edited:

RandomWalk

Senior Member
Joined
Feb 2, 2014
Messages
1,538
Reaction score
992
Neither the Pearl St or Ball Sq substations have their transformers connected yet. The conductors will end up routed inside through the cutout on the wall above them.


kingofsheeba

Active Member
Joined
Aug 22, 2013
Messages
580
Reaction score
604

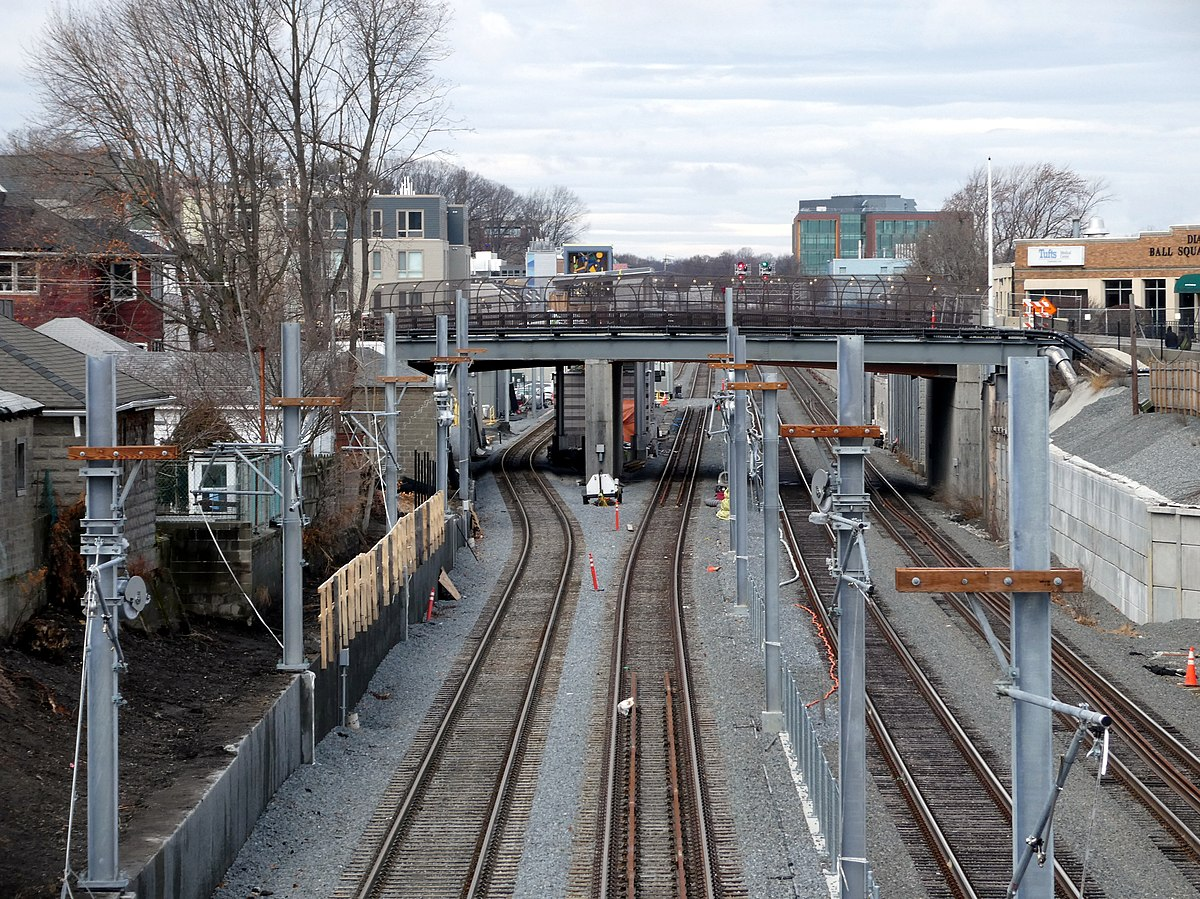

At Cedar Street you can rotate 180 degrees and see Ball Square station. The stations are only 2,600 feet apart, but their diagonal alignment on the street grid means their walksheds are more separate than the distance would suggest.
View attachment 20237

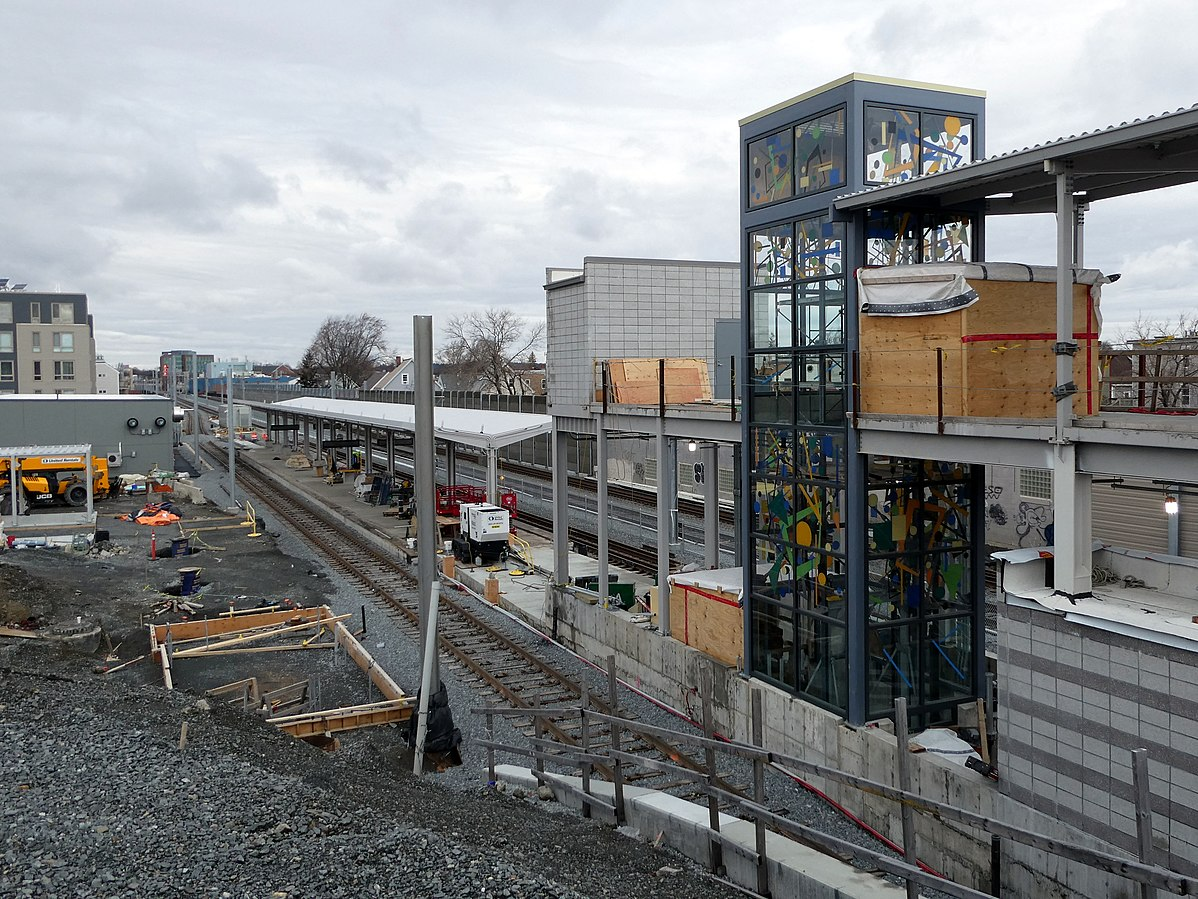

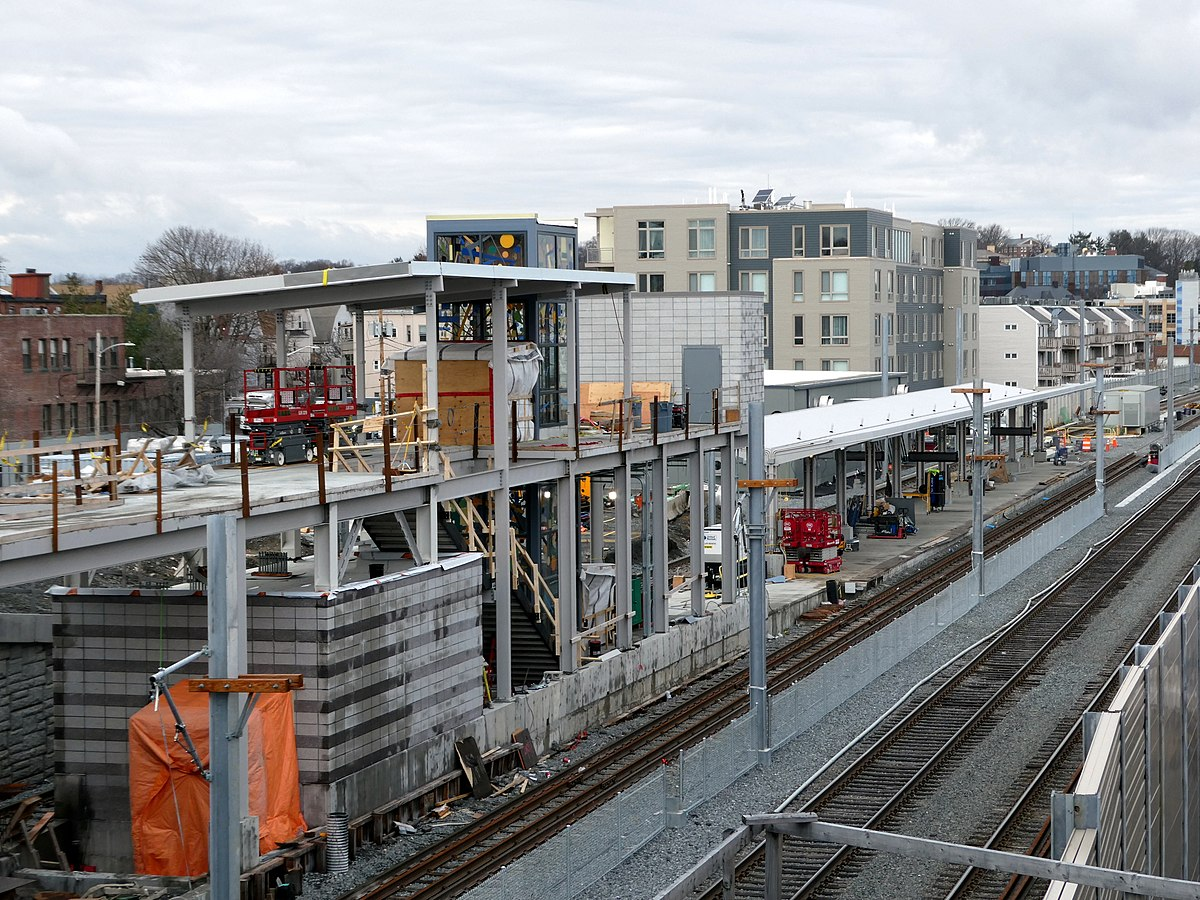

Ball Square station is progressing nicely. I'm fond of the elevator shaft artwork - it's an inexpensive way to add color and charm to these fairly basic stations.
View attachment 20238
View attachment 20239
View attachment 20240

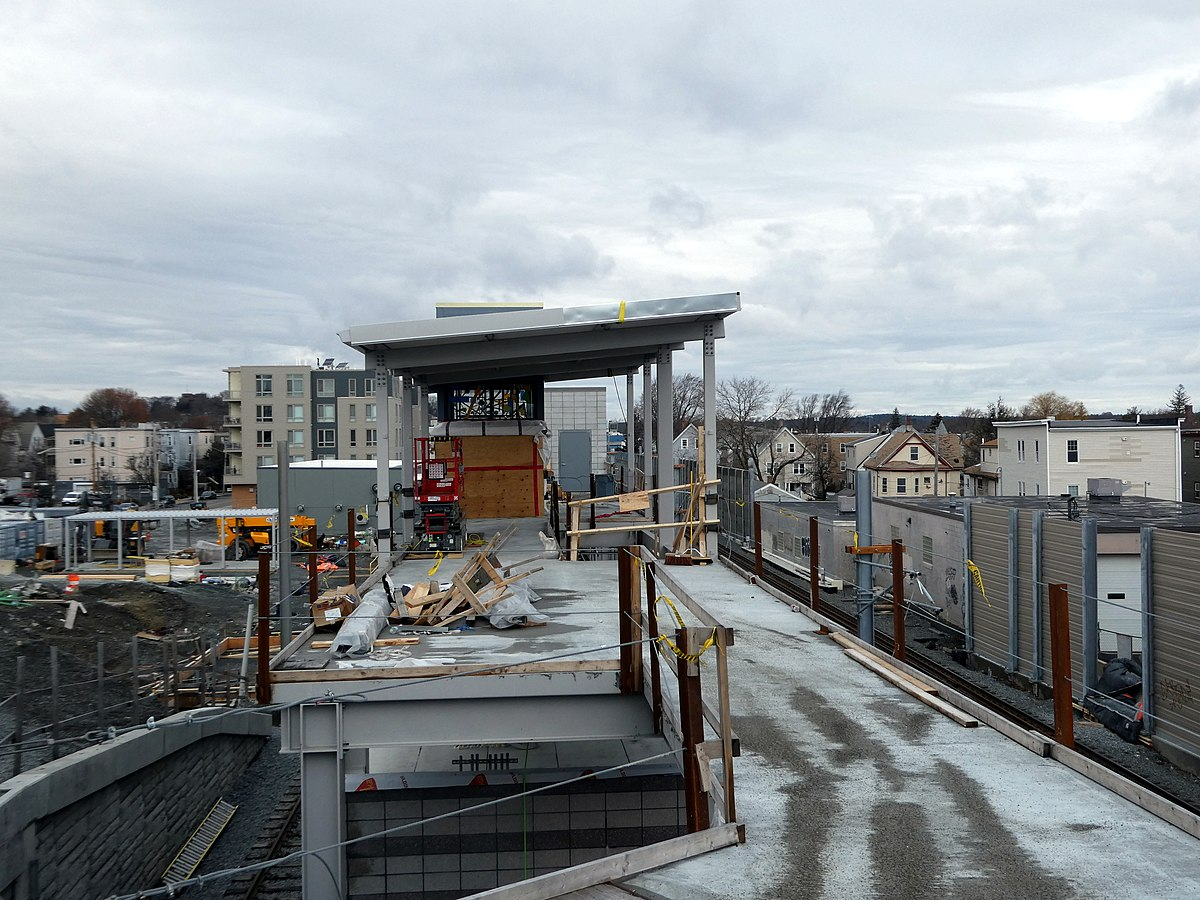

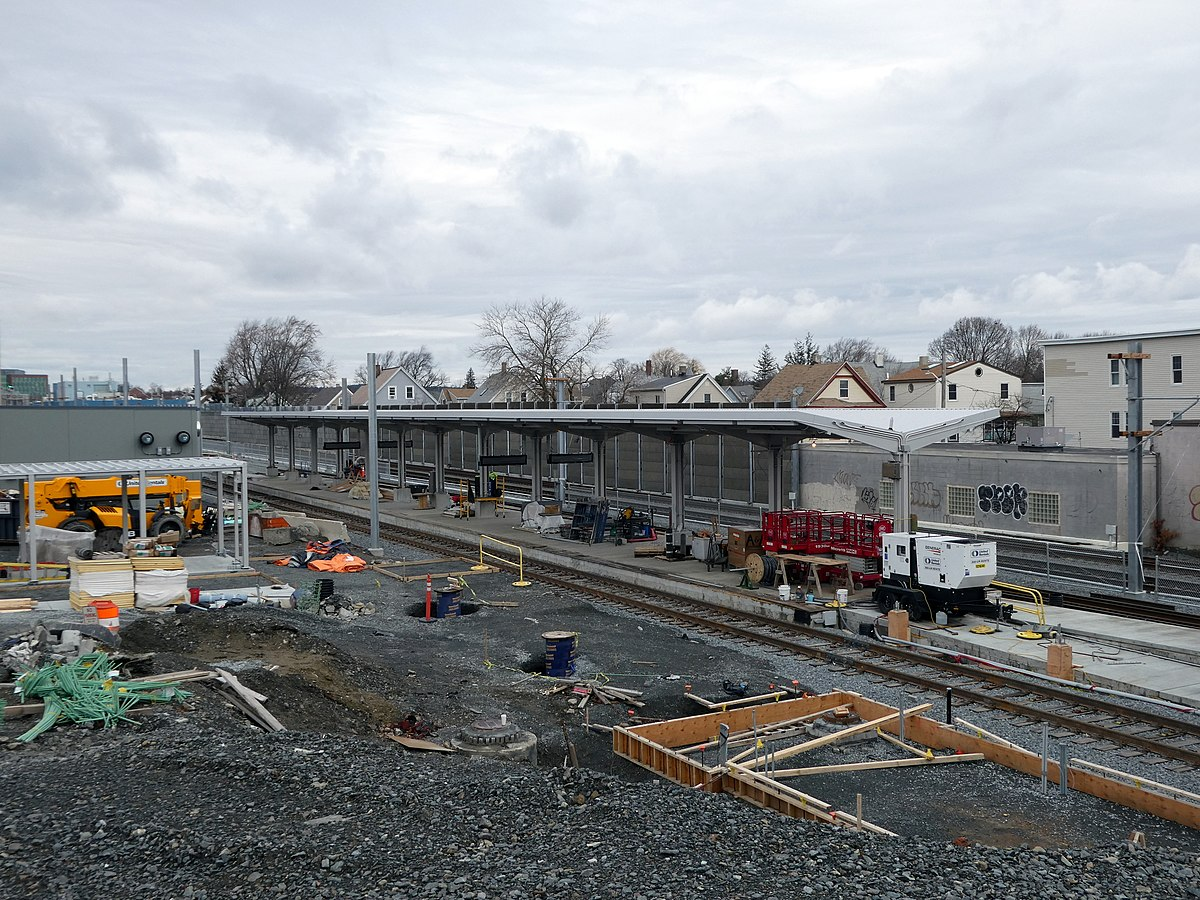

The wood framing in this photo and the last one is for the concrete pad of the secondary entrance, which will have a lockable overhead gate at one end and fare machines at the other.
View attachment 20241

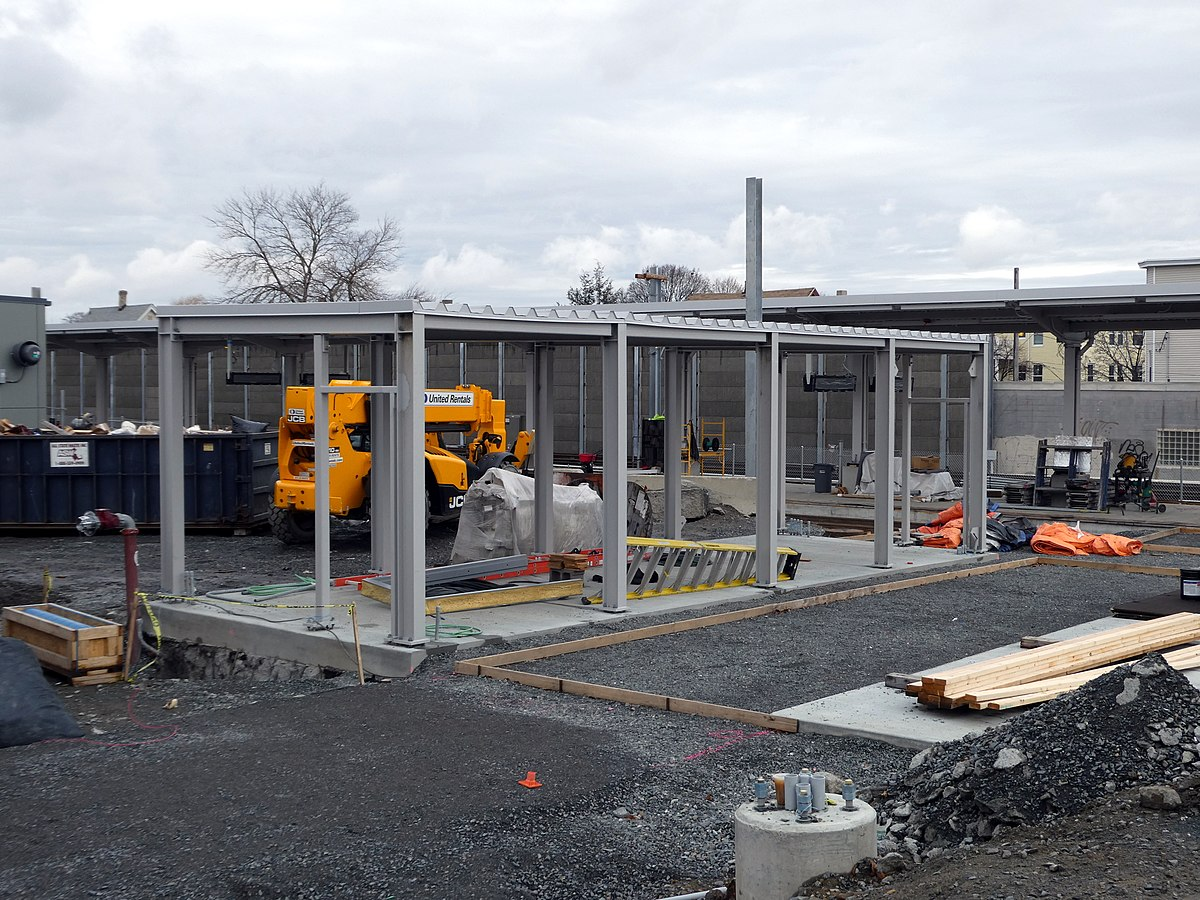

Bike cage:
View attachment 20242

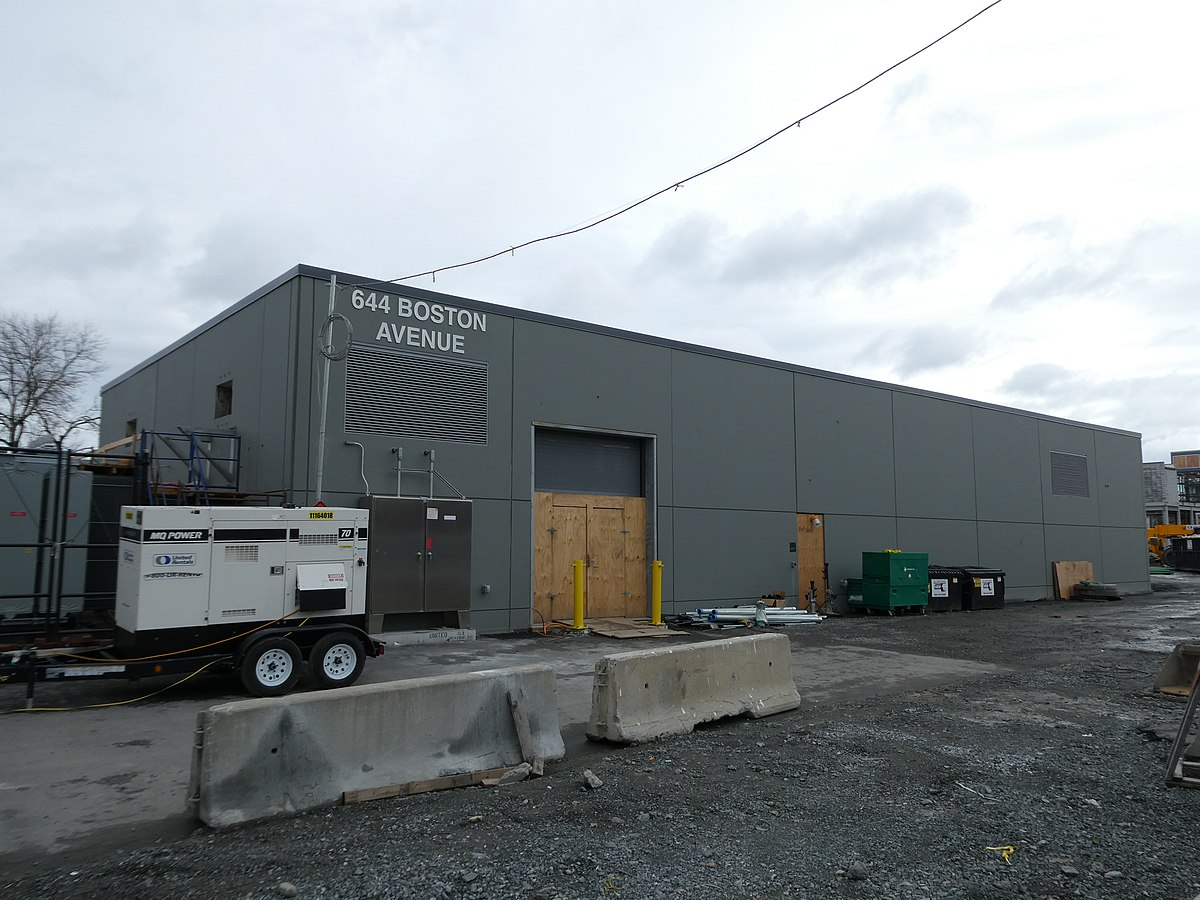

There are three substations for the GLX: Red Bridge (which I did not manage to photograph), Pearl Street, and Ball Square.
View attachment 20243

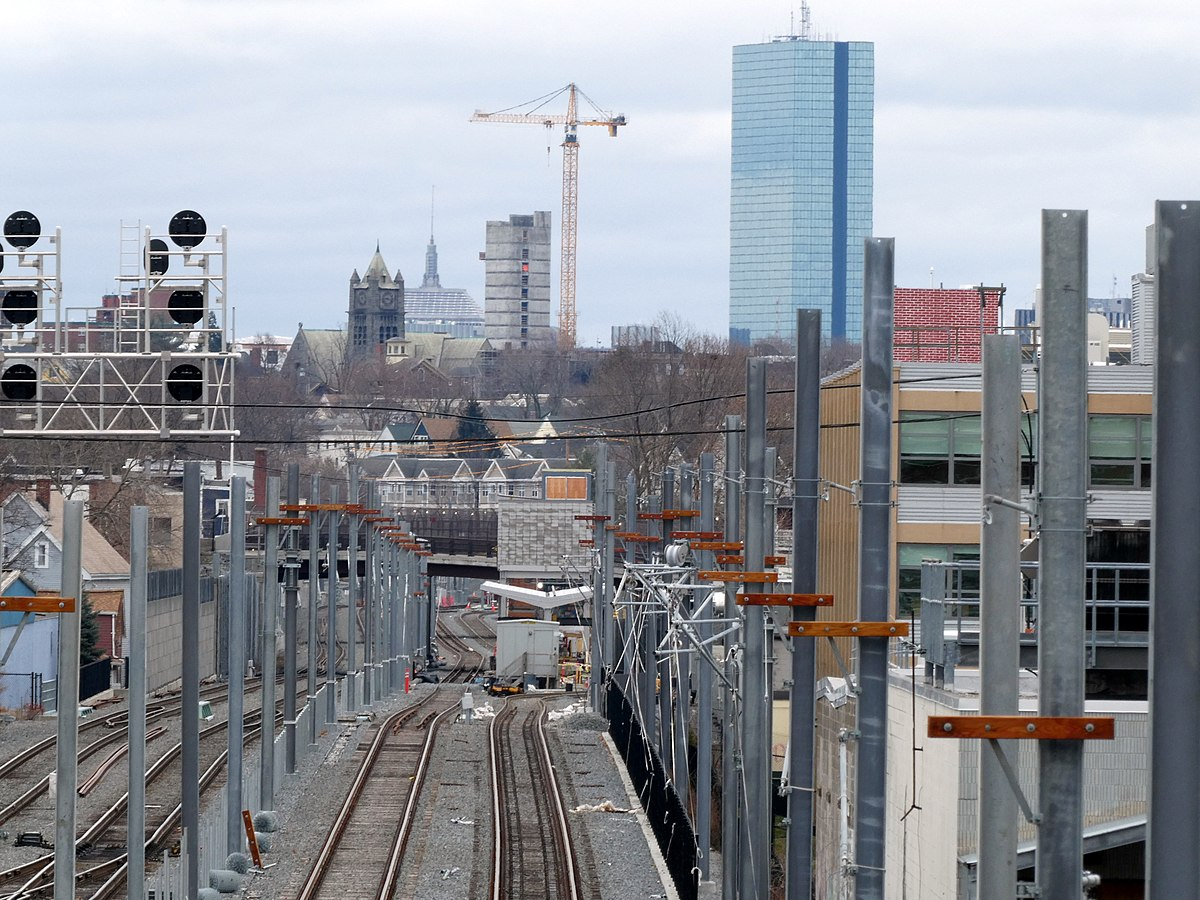

From College Avenue you can not only see Ball Square, but a little bit of Magoun Square as well. The tracks aren't actually kinked; you're just seeing a mile of track in one-third of a frame.
View attachment 20244

Tomorrow I'll finish up the photos.
You’re doing the lords duty


Jahvon09

Senior Member
Joined
Oct 2, 2011
Messages
2,155
Reaction score
229
I sincerely hope that they'll put some new & improved Charlie machines at the stations there!! :)


Ruairi

Active Member
Joined
Jun 17, 2014
Messages
492
Reaction score
410
Agreed - this area is begging for TOD. Lechmere and Union Square already have major development under way, while Gilman Square through Medford/Tufts are established neighborhoods where selective infill is the name of the game. But East Somerville has a lot of underutilized nearby land, especially as McGrath gets grounded and thus narrowed. A few of the businesses are essential, albeit not fixed to this exact spot (Cataldo ambulance, Eversource), but there's a lot of work truck parking and auto body shops that don't below right next to a brand new transit station. Replacing those first few lots along Joy Street with residential + two-sided retail arcade would make a huge difference.
There's a new Brickbottom master plan that just came out. It's still at the preliminary stage so years off but that whole area is definitely earmarked for serious residential and commercial development. Cataldo is a strange one for me. They are both sides of Washington, their site by the station entrance has got to be worth a fortune, I wonder if they'd consider consolidating on the north side location. They've also got to be concerned about the traffic chaos that will be caused by lowering McGrath. Also Oliveras are making ongoing improvements to their restaurant so there'll be no change at that site (not that I want to see Oliveras move). The whole area seems to be thought out poorly compared to other stations. The public safety building will bring a lot more cars to the area, and having Ambulance, fire, and police emergency vehicles surrounding a T station with heavy bike and pedestrian traffic by nature, seems daft.

Anyway, thanks again for the super thread!


AndrewOnTheMBTA

New member
Joined
Mar 12, 2021
Messages
87
Reaction score
74
Can anyone offer up any insight into the order of finishing touches done on stations to explain how much work we have to go before things look almost done? As in when stations are going to look almost operational. I noticed in photos that the boards for train times are up, however benches and station signage are not there. The elevator glass is installed, however, the yellow warning strip on platforms is not. Is there reasoning behind this? I think once station signage is up and finishing touches to stations are there, this will start to seem real.


RandomWalk

Senior Member
Joined
Feb 2, 2014
Messages
1,538
Reaction score
992
Different subs are doing work on their own schedules, which depend on other subs, obtaining materials, and finding enough workers. Someone in the GLX office probably has a Gantt chart or equivalent that shows the current state, but it’s not publicly available.

If you look at the Magoun platform from Maxwell’s Green, you can see a coordination board listing the day’s subs and their work.


stefal

Senior Member
Joined
Jan 15, 2015
Messages
1,580
Reaction score
2,061
Different subs are doing work on their own schedules, which depend on other subs, obtaining materials, and finding enough workers. Someone in the GLX office probably has a Gantt chart or equivalent that shows the current state, but it’s not publicly available.

If you look at the Magoun platform from Maxwell’s Green, you can see a coordination board listing the day’s subs and their work.
In addition, supply chains are really messing with construction schedules. Some items that would essentially be off-the-shelf before are months out. Even if we had a schedule from a few months ago, there's a chance it'd be pretty out of date/order by now...


HelloBostonHi

Senior Member
Joined
Apr 17, 2018
Messages
1,204
Reaction score
2,429
Can anyone offer up any insight into the order of finishing touches done on stations to explain how much work we have to go before things look almost done? As in when stations are going to look almost operational. I noticed in photos that the boards for train times are up, however benches and station signage are not there. The elevator glass is installed, however, the yellow warning strip on platforms is not. Is there reasoning behind this? I think once station signage is up and finishing touches to stations are there, this will start to seem real.
The only thing I can say pretty definitively is that signage is usually one of the very last steps before opening. Once station maps and line diagrams are going up you're usually within a month of opening.

Scroll down on this website and click through some of the MBTA Platform Gantt charts and you can get an idea of the order, its a different station but still green line.



The EGE

Senior Member
Joined
Jun 29, 2013
Messages
1,163
Reaction score
1,532

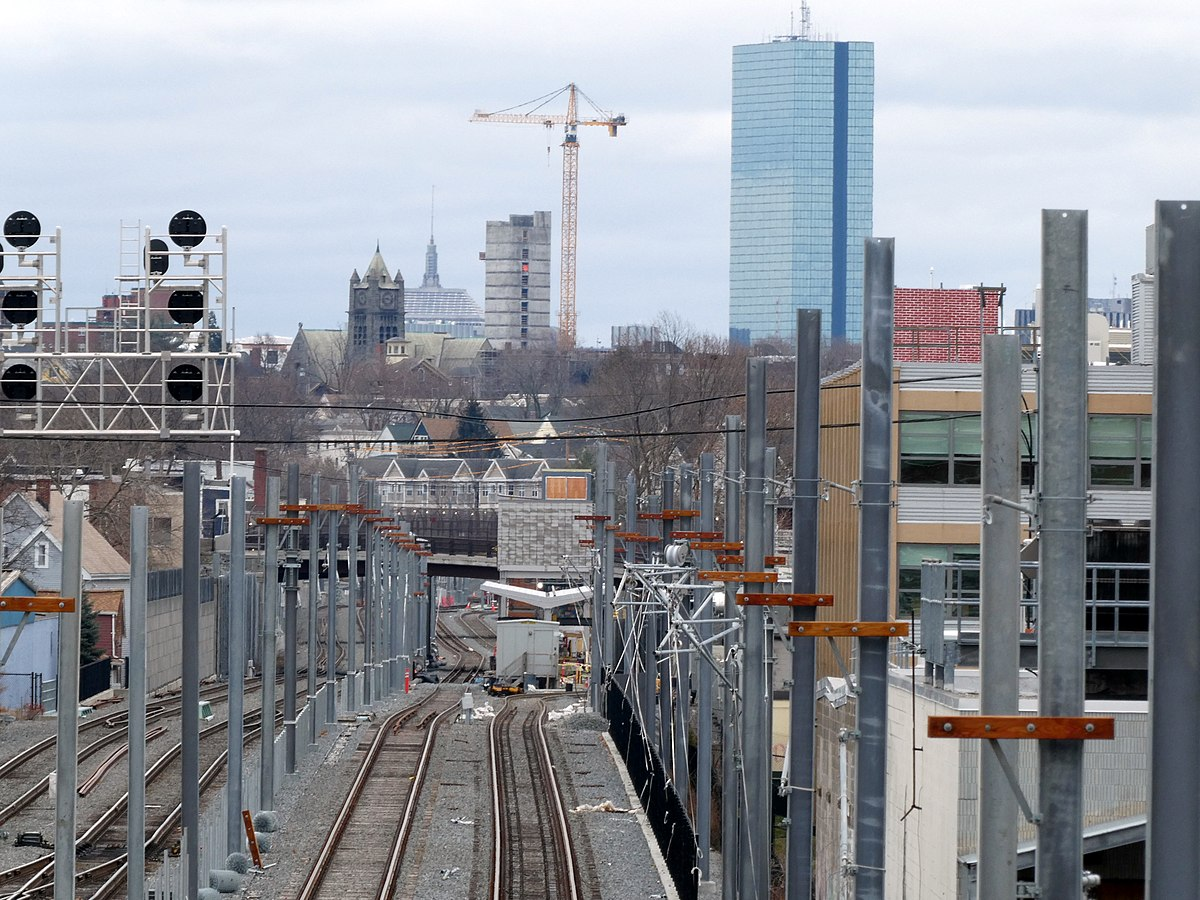

Interlocking south of College Avenue for Medford Branch trains to swap tracks:


There's not much to see from street level on College Avenue and Boston Avenue because the sidewalk is fenced off for construction. So, up to the 7th floor of the Dowling Hall garage we go. Here's the emergency exit stairs for Medford/Tufts station:


The station is coming along nicely. It appears that the yellow platform edge is installed, but covered by plywood for protection, as appears to be the case with most of the other stations.


I haven't seen this kind of scaffolding around the other headhouses - I'm not sure if it's different exterior materials or a different phase of construction.


That completes our walk-through of the GLX. The next time I visit, I hope to hope pictures from inside the opened stations!

For many of these locations, I've taken pictures at the same spot for several years in a row. If you want to see a time series of a specific view, just let me know!


ceo

Active Member
Joined
May 4, 2009
Messages
437
Reaction score
328
At Cedar Street you can rotate 180 degrees and see Ball Square station. The stations are only 2,600 feet apart, but their diagonal alignment on the street grid means their walksheds are more separate than the distance would suggest.
In the early planning phases, they were making noises about serving Ball and Magoun Squares via a single station at Cedar St. Which would have been incredibly inconvenient for anyone who didn't live on Cedar St, and the idea was quickly dropped.

Excellent photos, thank you for doing this!


AndrewOnTheMBTA

New member
Joined
Mar 12, 2021
Messages
87
Reaction score
74
Different subs are doing work on their own schedules, which depend on other subs, obtaining materials, and finding enough workers. Someone in the GLX office probably has a Gantt chart or equivalent that shows the current state, but it’s not publicly available.

If you look at the Magoun platform from Maxwell’s Green, you can see a coordination board listing the day’s subs and their work.
This is kind of what I was thinking - thanks!


Dr. Rosen Rosen

Active Member
Joined
Jul 19, 2021
Messages
185
Reaction score
588
There's a new Brickbottom master plan that just came out. It's still at the preliminary stage so years off but that whole area is definitely earmarked for serious residential and commercial development. Cataldo is a strange one for me. They are both sides of Washington, their site by the station entrance has got to be worth a fortune, I wonder if they'd consider consolidating on the north side location. They've also got to be concerned about the traffic chaos that will be caused by lowering McGrath. Also Oliveras are making ongoing improvements to their restaurant so there'll be no change at that site (not that I want to see Oliveras move). The whole area seems to be thought out poorly compared to other stations. The public safety building will bring a lot more cars to the area, and having Ambulance, fire, and police emergency vehicles surrounding a T station with heavy bike and pedestrian traffic by nature, seems daft.

Anyway, thanks again for the super thread!
Any tall TOD around East Somerville station will certainly have to contend with Boston’s only billionaire who occasionally works in Somerville via his helicopter landing pad! Air rights battle, anyone?

I just happened to catch him today - you guessed it: Herb Chambers, landing at his Mercedes/AMG dealership (across from McGrath hwy).
