^ This encourages me to feel "on schedule" in the sense that in order for the next phase of construction to start, they need access to the final grades on which the tracks and signals will get laid down.

"Access to the final grades" has two elements:
1) transversewise, the "floor" needs to be pushed all the way back to the base of the final retaining wall,
2) longitudinally, the linear running needs to be able to run alongside the future stations (or the stations need to be "done enough" to allow the tracks to be laid)

And it sure looks to me like we're a month away from that being so (except at Gilman and Tufts, which the schedule says will lag the others)


ra84970

New member
Joined
Jun 23, 2020
Messages
51
Reaction score
29
It's no longer on their site, but I seem to recall FOTCP's alternative path design included a lower crossing of the Fitchburg Line on a prefab truss bridge, then crossed under the GLX next to the Fitchburg at ground level. Of course, by the time the project was re-bid, some of the supports for the higher crossing had already been built.

Of course, the grade is going to exacerbate the other problem with the path, which is that it's really narrow by modern design guidelines for the anticipated traffic loads.
I think the new GLX did not reuse those structures in the redo version of the CPX.


citydweller

Active Member
Joined
Aug 23, 2019
Messages
126
Reaction score
117
Ok, this has been bugging me. Admittedly, I'm a neophyte regarding this project but what is that structure and isn't that smack-dab in the middle of where the new tracks are going?




jbray

New member
Joined
May 22, 2019
Messages
74
Reaction score
36
Ok, this has been bugging me. Admittedly, I'm a neophyte regarding this project but what is that structure and isn't that smack-dab in the middle of where the new tracks are going?
That would be Gilman Square Station and the tracks will go on either side of it. Outbound roughly just inside where the temporary concrete barriers are and inbound between the island and the retaining wall. Here's a quick overview.


Arlington

Moderator
Staff member
Joined
Dec 10, 2011
Messages
4,569
Reaction score
697
Smack dab in the middle = smack between, like many bridge supports.

At both Gilman and Ball Sq the inbound GLX is being routed behind an existing bridge abutment where the dirt has been mined out behind it, and a small span will bridge between the old abutment and the new retaining wall


Vagabond

Active Member
Joined
Mar 17, 2017
Messages
219
Reaction score
344

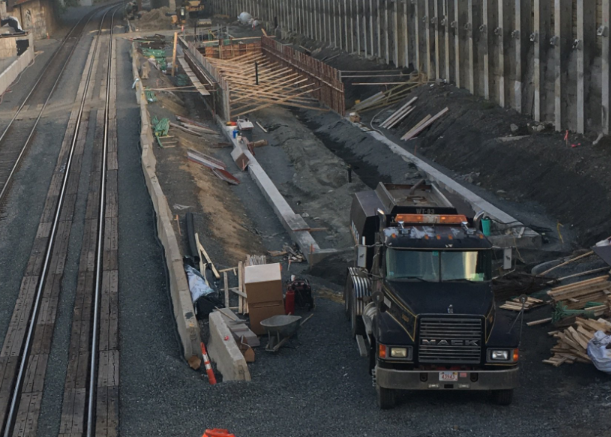

Ok, this has been bugging me. Admittedly, I'm a neophyte regarding this project but what is that structure and isn't that smack-dab in the middle of where the new tracks are going?


View attachment 7172
Surprised they didn't finish the retaining wall while the crane can fit easily.

Great to see the platform foundations going in along this stretch. Can you imagine how much longer this would take with the original 2-3 story stations?


ceo

Active Member
Joined
May 4, 2009
Messages
318
Reaction score
148
At both Gilman and Ball Sq the inbound GLX is being routed behind an existing bridge abutment where the dirt has been mined out behind it, and a small span will bridge between the old abutment and the new retaining wall
Tiny little correction: they're doing this with the Medford St and School St bridges, on either side of the Gilman Square station. The Ball Square bridge was torn down and rebuilt from scratch, but it also has a pier between the inbound and outbound GLX tracks. I'm guessing they put it there because a central pier would be in the way of the outbound track as it shifts to the center approaching the station.


Arlington

Moderator
Staff member
Joined
Dec 10, 2011
Messages
4,569
Reaction score
697
^ Thanks for the correction on Ball Sq. Here's an earlier picture by Javier that shows that Ball Sq has a "clearly new" smack-dab pier (the uniform corduroy finish indicates it is new) between the inbound and outbound sides of the GLX. Essentially at Gilman, they're re-using the abutment and spans of the pre-existing bridge, but adding an extra "bay" to them.


Arlington

Moderator
Staff member
Joined
Dec 10, 2011
Messages
4,569
Reaction score
697
CEO also called this one correctly:
It looks like there's juuuuust enough width to squeeze the inbound track through [ the "back way out" of the Titan Gas car wash b(https://goo.gl/maps/amDpjepRHMER2uR79)], but they'll probably want to rebuild that timber retaining wall.
They have, in fact, replaced (or augmented?) the timber retaining wall with a wall of pre-fab panels similar to those elsewhere on the raised grade of the the GLX/CR tracks between Titan Gas (Boston @ Harvard St) and Tufts' eastern reaches.

Last edited:

RandomWalk

Active Member
Joined
Feb 2, 2014
Messages
788
Reaction score
106
Ironically, the pre-1970’s Broadway bridge crossed a full 4 track ROW. The 1970’s replacement buried one of the old abutments behind its replacement, and that slowed the work on the new one.


ra84970

New member
Joined
Jun 23, 2020
Messages
51
Reaction score
29
Evening walk took me by the future access ramp to the East Somerville station. 9.16.2020


Also surprised that the northern abutment has that unused space next to the sidewalk.



Wash

Active Member
Joined
Feb 28, 2017
Messages
100
Reaction score
62
Sometimes it's the little things. Here's a gap in the new Broadway Bridge (in this picture, covered with a piece of plywood) that will soon be a set of stairs running down to the Ball Square platform.

Last edited:

RandomWalk

Active Member
Joined
Feb 2, 2014
Messages
788
Reaction score
106
They are really designing the bike path to give people a good cardio workout. Has the design team explained why it’s such a roller coaster?


Vagabond

Active Member
Joined
Mar 17, 2017
Messages
219
Reaction score
344
They are really designing the bike path to give people a good cardio workout. Has the design team explained why it’s such a roller coaster?
TBH, while the Minuteman has lots of bikes moving at high speed, the Somerville community path with all it's winding has always been more tailored to pedestrians. While a "bike-highway" to downtown would be great, this isn't that. I'm picturing lots of walkers, bluebikes, Escooters and light-commuters catching the nearest train, like Somerville's existing demographics do. The ABILITY to give bikers a safer commute should make up for the slower safe-speed expectations.


ra84970

New member
Joined
Jun 23, 2020
Messages
51
Reaction score
29
TBH, while the Minuteman has lots of bikes moving at high speed, the Somerville community path with all it's winding has always been more tailored to pedestrians. While a "bike-highway" to downtown would be great, this isn't that. I'm picturing lots of walkers, bluebikes, Escooters and light-commuters catching the nearest train, like Somerville's existing demographics do. The ABILITY to give bikers a safer commute should make up for the slower safe-speed expectations.
Yeah, it feels like this will be part time a commuter route. And really for most of the rest of days of the week a way for people to get off of busy/noisy local arterials and stroads for a nice walk around the neighborhood or perhaps a quieter way to get to and from specific destinations like City Hall or the high school that is off-street. Also, like the paths by North Point Park a weekend destination.
